Suitability Analysis of the CME CF Bitcoin Reference Rate - Asia Pacific Variant as a Basis for Regulated Financial Products

Benchmarking the Price of Bitcoin

In traditional markets, price benchmarks are used extensively for a variety of purposes, from settling derivatives transactions, to determining Net Asset Value (NAV) for investment funds amongst a host of use cases in institutional finance. One could almost go as far as saying that the preponderance of the use of a benchmark is a hallmark of the degree to which any market is institutional in nature. Certainly, as asset classes like commodities historically saw greater participation from financial institutions, benchmarks such as the S&P GSCI became more ubiquitous in that market. The market for Bitcoin trading has, since its inception in 2010, been largely driven by individual investors, with a small but increasing stream of institutional participation since 2017, when the first regulated futures contracts were launched by CME Group and CBOE Inc.

Today, there are regulated derivatives contracts from CME Group and Eurex AG, recently approved regulated spot Bitcoin ETFs in the US as well as a variety of other regulated exchange traded products and funds in Canada, Brazil, Hong Kong and Europe. A market at this juncture typically begins to exhibit increased benchmark usage that accelerates participation in the markets for these products by institutions. Whilst Bitcoin is a novel asset, the requirements of a benchmark price for Bitcoin are no different from those required of a benchmark price for any other asset. Whether it be Brent/WTI for crude oil, Term SOFR for money markets, or EuroStoxx 50 for the European equity markets – all benchmarks need to be representative of the underlying market, resistant to manipulation, and replicable by market participants, to be able to foster further institutional participation in the underlying market that is being measured.

The CME CF Bitcoin Reference Rate – Asia Pacific Variant (BRRAP)

This paper seeks to understand whether those qualities are being achieved by the regulated CME CF Bitcoin Reference Rate – Asia Pacific Variant (BRRAP). The index is methodologically identical to the regulated CME CF Bitcoin Reference Rate (BRR), the most widely used benchmark price for Bitcoin, that is used to settle the Bitcoin-USD derivatives complex listed by CME Group, and which serves as the NAV for exchange listed investment products issued by WisdomTree Europe, Evolve ETFs, and QR Asset Management. Since January 2024, the New York Variant of the BRR has also been used to NAV the spot Bitcoin ETFs listed on NYSE, Nasdaq and CBOE in the U.S.. The only difference between the CME CF BRRAP and the CME CF BRR, is that BRRAP references the price of Bitcoin at the closing time of major APAC markets at 16:00 Hong Kong Time, rather than the price at 16:00 London Time, referenced by the BRR. The purpose of BRRAP is to provide a replicable, manipulation-resistant and representative Bitcoin benchmark that synchronizes with the traditional APAC market close.

Just like the CME CF Bitcoin Reference Rate, the CME CF Bitcoin Reference Rate – Asia Pacific Variant is a once-a-day benchmark index price for Bitcoin denominated in U.S. dollars. Input data are obtained from major cryptocurrency exchanges that conform to the CME CF Constituent Exchange Criteria. The CME CF Bitcoin Reference Rate – Asia Pacific Variant is a regulated Benchmark under the UK Benchmarks Regulation (BMR) regime.

Calculation Methodology

The BRRAP calculation methodology aggregates transactions of Bitcoins in U.S. dollars that are only conducted on the most liquid markets for which data is publicly available and operated by exchanges that meet the CME CF Constituent Exchange Criteria.

The list of Constituent Exchanges and information about changes to its composition are available at the following link:

CME CF Constituent Exchanges

The full methodology is also available here:

CME CF Reference Rates Methodology

The methodology can be summarised thus:

Transactions conducted on Constituent Exchanges are observed during a one-hour window from 15:00 to 16:00 Hong Kong Time
The one-hour window is divided into 12 partitions of equal length (five minutes each)
For each partition, a volume-weighted median (VWM) is calculated
The index value is expressed as the arithmetic mean of the 12 VWMs calculated in the previous step

Benchmark validity and volume sufficiency

A valid and robust benchmark needs to be calculated from input data of sufficient volume so that it is representative of the market it seeks to measure. From a practical perspective, volume sufficiency is also key in order for the benchmark to be replicated by institutional market participants and product providers that need to warehouse price risk. To understand how the BRRAP measures up, data summarizing a total number of transactions and an average number of transactions per day observed each month during the observation window (data represent both trade count and bitcoin volume) are presented in Figure 1.

Note: LMAX Digital was added as a Constituent Exchange from May 2022.

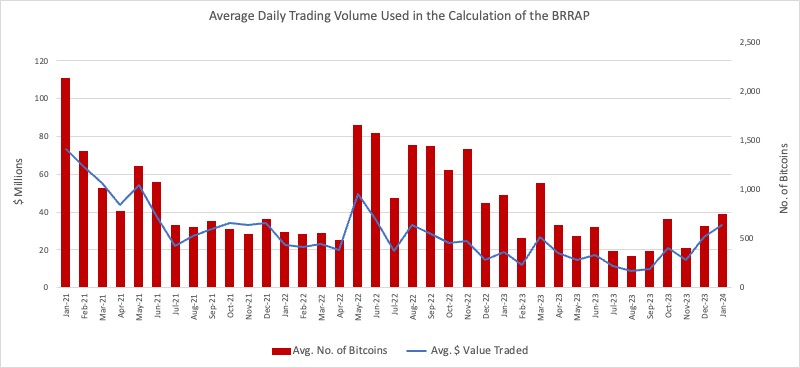

Between January 1st, 2021, and January 24th, 2023, on average, 994.17 Bitcoins, or $33M (at contemporaneous USD prices) were traded across an average of 17,241 transactions during each daily observation window between 15:00 and 16:00 Hong Kong Time on the BTC-USD markets of CME CF Constituent Exchanges used as input data to the BRRAP. Whilst trading activity exhibits volatility, this volatility is not substantially different from that shown in traditional asset markets. In conclusion, the volume observed and the reliability of that volume are clearly evident to be sufficient for the calculation of a robust and reliable benchmark.

Resistance to Manipulation – Benchmark Integrity

This section will address the question of whether the BRRAP is possessed of integrity in the specific sense applied by securities regulations. The practical imperative is that a benchmark requires integrity because it will be used for a wide range of activities such as asset valuation, settlement of financial risk, risk management, NAV calculation, unit creation and unit redemption. Specifically, the benchmark must both be shown to be free of manipulation and furthermore, it must be administered and calculated in a manner that deters and impedes manipulation.

Deterring and Impeding Manipulation

The methodological design underlying the BRRAP and its system of administration incorporate measures that promote integrity as outlined in the sub-sections below.

Impeding Manipulation by Input Data selection

CF Benchmarks exclusively sources input data from Constituent Exchanges that meet published criteria as set out in its Constituent Exchanges Criteria. The criteria are available at this link:

CME CF Constituent Exchanges Criteria

Particular attention is drawn to the following statement from the Constituent Exchanges Criteria document (part 2 of Section 3, page 4: ‘Eligibility Criteria’):

“The venue has policies to ensure fair and transparent market conditions at all times and has processes in place to identify and impede illegal, unfair or manipulative trading practices.”

CF Benchmarks ascertains the presence of fair and transparent market conditions and processes to identify and impede illegal, unfair or manipulative practices by conducting a thorough review of any exchange under consideration for inclusion as a Constituent Exchange. The arrangements of all Constituent Exchanges are reviewed annually to ensure that they continue to meet all criteria specified within “Constituent Exchange Criteria”. This due diligence is documented, and the information is distributed to CF Benchmarks’ oversight organs to consider. The deliberations of oversight organs are conducted during regular meetings, minutes of such meetings are publicly available, being published by the Administrator on its website.

Manipulation resistance by design

Resistance to manipulation is a priority aim of the design methodology underlying the CME CF Bitcoin Reference Rate – Asia Pacific Variant. The methodology takes an observation period and divides it into equal partitions of time. The volume-weighted median of all transactions within each partition is then calculated. The benchmark index value is determined from the arithmetic mean of the volume-weighted medians, equally weighted. The benefits of this process with respect to achieving manipulation resistance are outlined below.

Use of partitions

Individual trades of large size have limited effect on the index level as they only influence the level of the volume-weighted median for that specific partition.

A cluster of trades in a short period of time will also only influence the volume-weighted median of the partition or partitions they were conducted in.

Use of volume-weighted medians

Use of volume-weighted medians as opposed to volume-weighted means ensures that transactions conducted at outlying prices do not have an undue effect on the value of a specific partition.

Equal weighting of partitions

By not volume weighting partitions, trades of large size or clusters of trades over a short period of time will not have an undue influence on the index level.

Equal weighting of constituent exchanges

CF Benchmarks applies equal weight to transactions observed from CME CF Constituent Exchanges. With no pre-set weights, potential manipulators cannot target one platform for the conduct of manipulative trades.

Use of arithmetic mean of partitions

Using the arithmetic mean of partitions of equal weight further denudes the effect of trades of large size, at prices that deviate from the prevailing price, having an undue influence on the benchmark level.

Manipulation resistance by exclusion of input data

A specific procedure for dealing with potentially erroneous data is incorporated into the methodology of the BRRAP. Although volume-weighted medians of transaction prices from individual data sources are not part of the benchmark determination process, they are calculated as a means of quality control and manipulation resistance.

In the event of an instance of index calculation in which a Constituent Exchange’s volume-weighted median transaction price exhibits an absolute percentage deviation from the volume-weighted median price of other Constituent Exchange transactions greater than the Potentially Erroneous Data Parameter (10%), then transactions from that Constituent Exchange are deemed potentially erroneous and excluded from the index calculation. All instances of data excluded from a calculation trigger a Benchmark Surveillance Alert that is investigated.

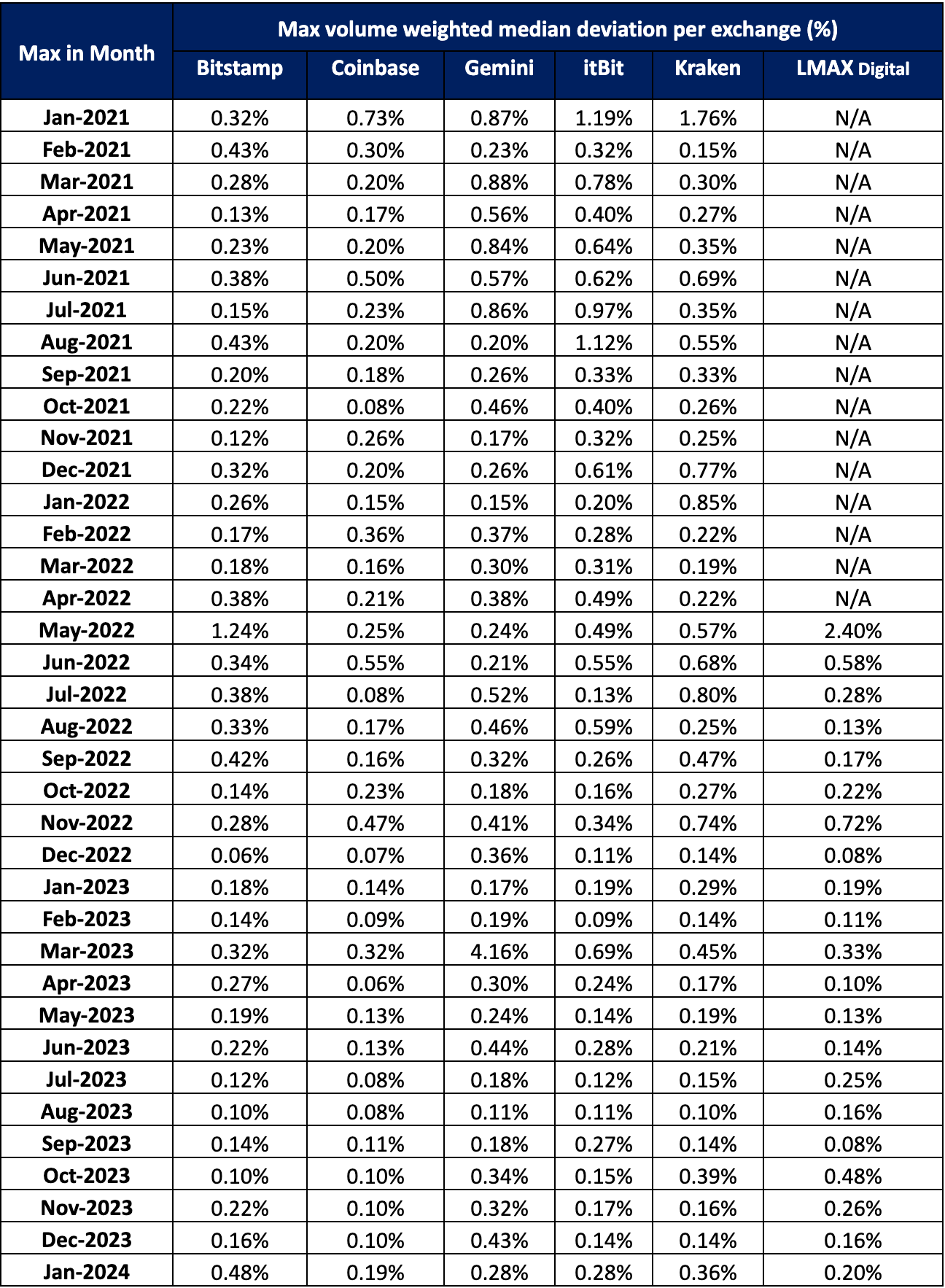

Between January 1^st, 2021, and January 24^th, 2024, the Potentially Erroneous Data Parameter of the methodology for the CME CF Bitcoin Reference Rate – Asia Pacific Variant has never been triggered. Analysis of the max volume-weighted median per exchange during the observation period produced the results in Table 1. The results illustrate that during the observation period, no Constituent Exchange’s input data needed to be excluded due to exhibiting potential manipulation and indeed no individual cryptocurrency exchange exhibits a deviation percentage above 4.16% during this period.

Note: LMAX Digital was added as a Constituent Exchange from May 2022.

Benchmark Surveillance

Although a series of measures have been undertaken to mitigate the risk of benchmark manipulation, CF Benchmarks remains vigilant against attempted benchmark manipulation and monitors input data continuously. To that end, CF Benchmarks has implemented a benchmark surveillance programme for the investigation of alerts. Instances of suspected benchmark manipulation are escalated through appropriate regulatory channels in accordance with CF Benchmarks’ obligations under the UK Benchmarks Regulation (UK BMR). Regarding benchmark manipulation, Article 14 of the UK BMR, Reporting of Infringements, states:

1. An administrator shall establish adequate systems and effective controls to ensure the integrity of input data in order to be able to identify and report to the FCA any conduct that may involve manipulation or attempted manipulation of a benchmark, under Regulation (EU) No 596/2014.

2. An administrator shall monitor input data and contributors in order to be able to notify the FCA and provide all relevant information where the administrator suspects that, in relation to a benchmark, any conduct has taken place that may involve manipulation or attempted manipulation of the benchmark, under Regulation (EU) No 596/2014, including collusion to do so.”

As a regulated Benchmark Administrator, CF Benchmarks is subject to supervision by the UK FCA. Furthermore, CF Benchmarks’ Control Procedures with respect to compliance with the UK BMR have been audited by ‘Big Four’ accountancy firm Deloitte. The Independent Assurance Report on Control Procedures Noted by CF Benchmarks Regarding Compliance with the UK Benchmarks Regulation as of 12 September 2022 is available at the following link:

CF Benchmarks SOC1 Audit Report

This further verification of CF Benchmarks’ compliance with the UK BMR places the CME CF Bitcoin Reference Rate – Asia Pacific Variant on the same level of scrutiny applied to widely used traditional financial benchmarks like ICE SWAP, SONIA and RONIA.

Assessing BRRAP values and input data for signs of manipulation

Whilst the BRRAP was designed and is administered to the highest standards, including efforts to uphold provisions of the UK BMR, the proof of the pudding is in the eating and further analysis of the data is required.

Were there to be a lack of integrity in the input data that could in turn affect the integrity of the benchmark, one would expect to see one of a number of phenomena reflected in the input data provided by Constituent Exchanges. One potential example would be significant price dislocations between Constituent Exchanges.

How well correlated are Constituent Exchange prices?

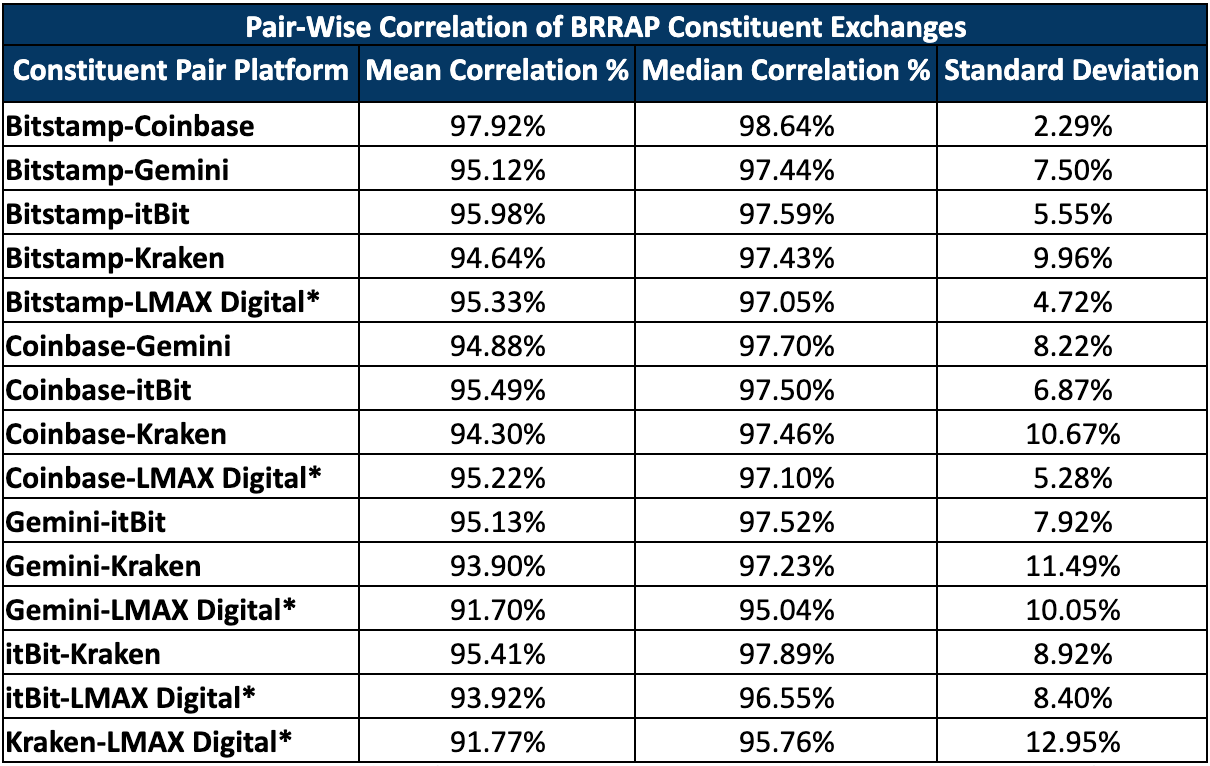

An analysis was undertaken of the pair-wise correlation of prices from Constituent Exchanges on a per-minute basis (the price difference between transactions for each minute at each exchange) during the observation period. The results of this analysis are shown in Table 2.

*LMAX Digital became a constituent exchange from 03 May 2022. LMAX Digital was added as a Constituent Exchange from May 2022.

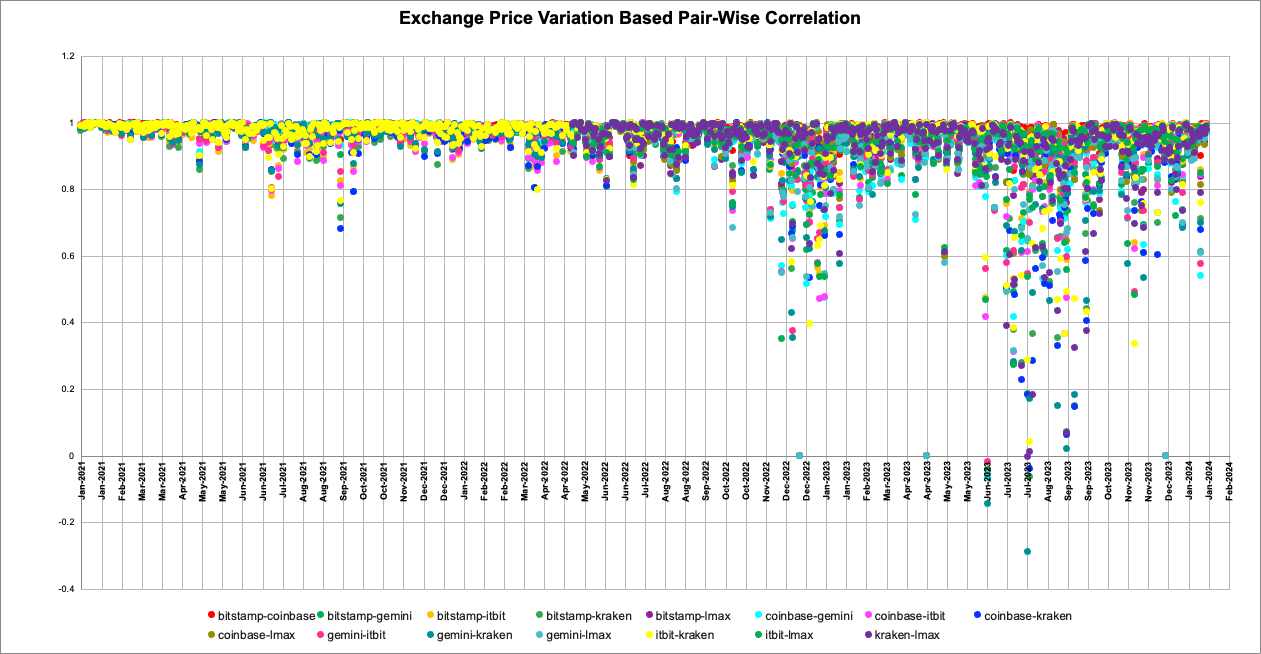

To illustrate the data analyzed in Table 2 in graphical form, Figure 2 (below) displays the full data set. The clustering towards correlation coefficients of 1.00, and the fact that on less than 2% of days any exchange had a correlation with another exchange below 0.5, demonstrate strong price correlation between the Constituent Exchanges and points towards fair and orderly markets. The pattern is understandably broken around the time of the FTX bankruptcy (November-December 2022) given the extreme volatility this event precipitated.

Replicability and Implementation

The final characteristic of the BRRAP that this paper will examine with respect to its merits as a benchmark price is its replicability. In other words, that the BRRAP benchmark price can be transacted in practice on any given day without undue risks.

Buying and selling large amounts of Bitcoins at BRRAP

To begin demonstrating the replicability—or to use another term, the achievability—of the strategy presented in this paper for purchasing Bitcoin ‘at scale’, observations taken whilst modelling the purchase or sale of a notional large amount of Bitcoin are presented below. It was decided that the purchase or sale of 75 Bitcoins (c. $3.2M at the time of writing) was at an adequate scale to represent a large Bitcoin trade of the kind that institutional traders might need to undertake for a client, or that an issuer of a financial product (such as an ETF or a derivative) would be required to execute on any given day, in order to facilitate trading of that product. A simple replication simulation was thereby conducted to demonstrate the extent of slippage that implementation of the BRRAP would probably encounter. Given that the purpose is to demonstrate institutionally sized liquidity, the simulation was conducted for weekdays only.

Simulation Methodology

Trades are executed on n (6) Constituent Exchanges, during a 3,600-second window
One trade is executed every second and the price achieved is assumed to be the last execution price observed in that second. Its associated volume is assumed to be the volume executed during that second
If no trade is completed in any single-second period, then the price achieved is assumed to be the price achieved in the previous second, but the associated volume from the previous second is not added to the volume executed in the latest second

It is worth noting that in the ‘real world’, institutions deploy algorithmic systems to execute large-scale asset purchases. It is highly probable that conducting the exercise presented here by means of algorithmic systems would have produced outcomes that are even more favourable. For research purposes, a simplified simulation methodology was favoured to demonstrate the replicability properties of the BRRAP.

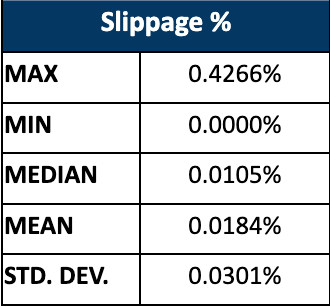

The results of this exercise are displayed in Figure 3 and summary data provided in Table 3. As can be seen, the BRRAP can be replicated with a high degree of confidence and usually with slippage of no more than 1 basis point. On only 6% of days would slippage have been greater than 5 bps. Indeed, even on the most volatile day, slippage was only 42.6 basis points. Furthermore, in the 37-month period under observation, slippage would only have been in double-digit basis points on 17 days.

Conclusion

From the analysis conducted it is quite clear that the CME CF Bitcoin Reference Rate – Asia Pacific Variant exhibits all the key properties required of a benchmark.

Representative: Bitcoin-USD markets that are operated by the CME CF Constituent Exchanges during 15:00 to 16:00 Hong Kong Time are liquid, with sufficient volume of trading to represent the market in a robust manner.

Resistant to Manipulation: The BRRAP Constituent Exchange Criteria ensure that it takes input data only from cryptocurrency exchanges that exhibit fair and orderly behaviour, where trading shows strong price correlations between each other. On top of this, the methodology that the BRRAP employs nullifies the effects of any manipulation, and the Administrator’s policies and processes regarding surveillance ensure that any manipulation is detected.

Replicable: The BRRAP methodology promotes replicability, allowing users to replicate the benchmark simply and without undue risks.

Note: Following initial publication on February 5th, 2024, Table 3 and paragraph 3 under 'Simulation Methodology' were amended on 20th February 2024, to reflect the removal of weekend trading data (Saturday and Sunday) from the slippage calculation, to align this research publication with prior research publications for BRRNY and BRR. BRRAP slippage rates were marginally higher following this amendment but remained of low fractional magnitude.
